Specification

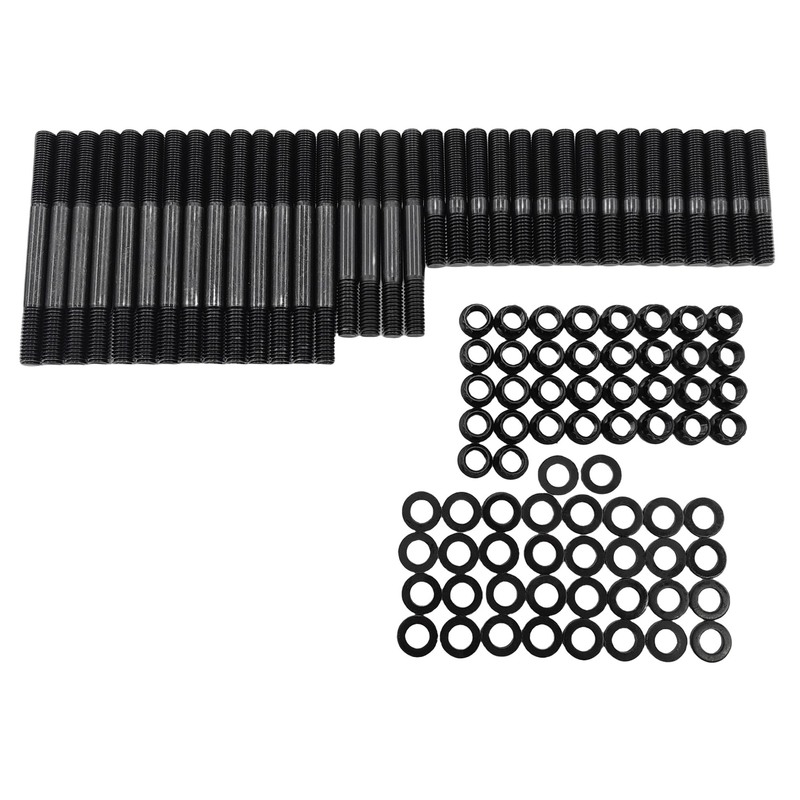

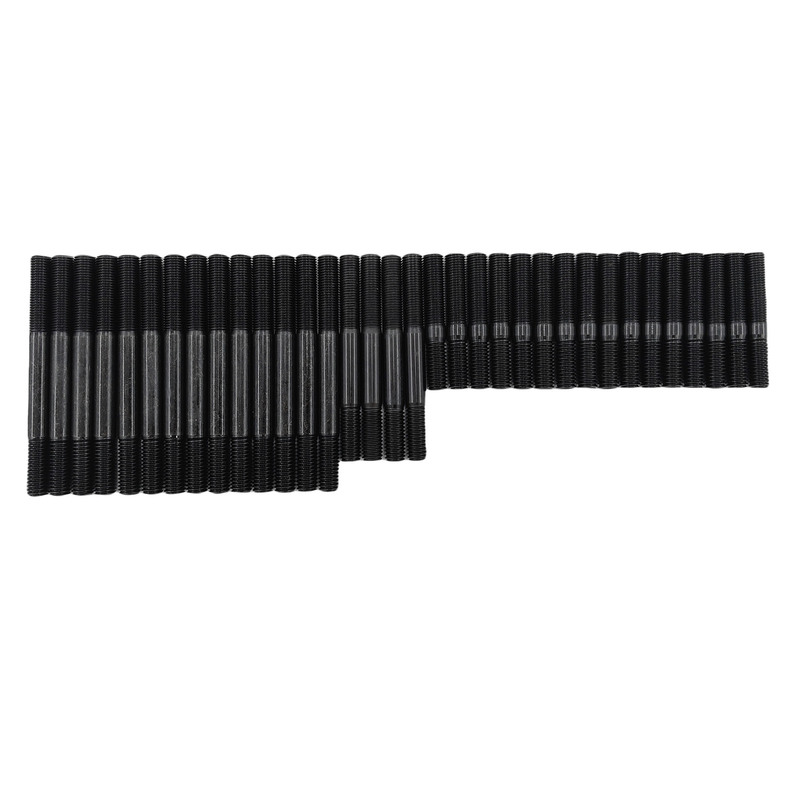

ATP Head Stud Kit With 12 Point Nuts

8740 Grade Material

Torque Recommendations: 75 ft. lbs Or 101Nm



Fitment

Fit For Chevrolet Small Block 350



Package

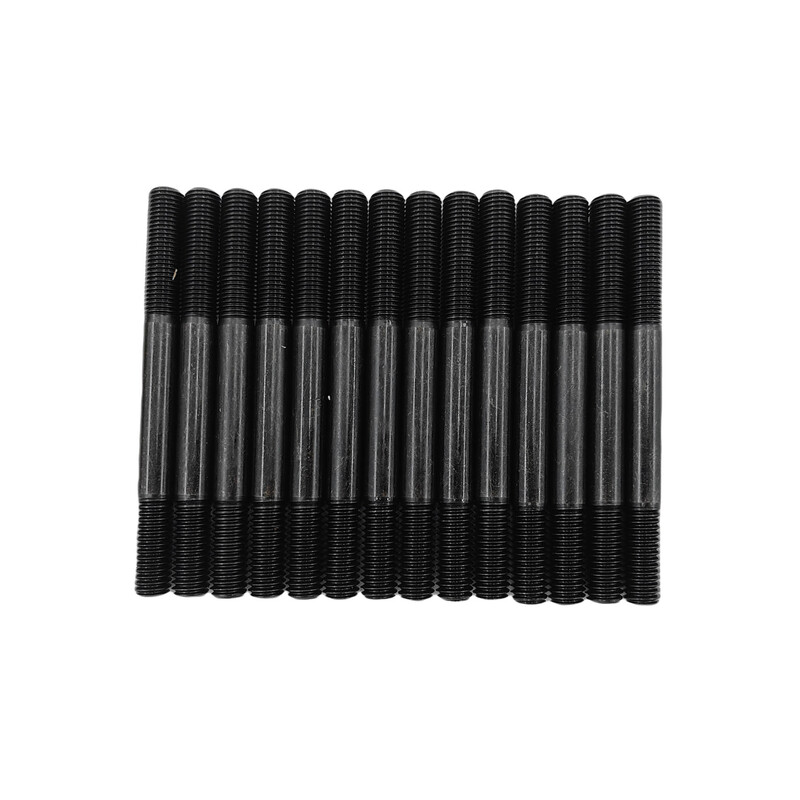

14 x Long Studs

119.20mm Overall Length

47mm Shank Length

7/16”-14 Thread Into Engine Block

7/16”-20 Thread On Nut End

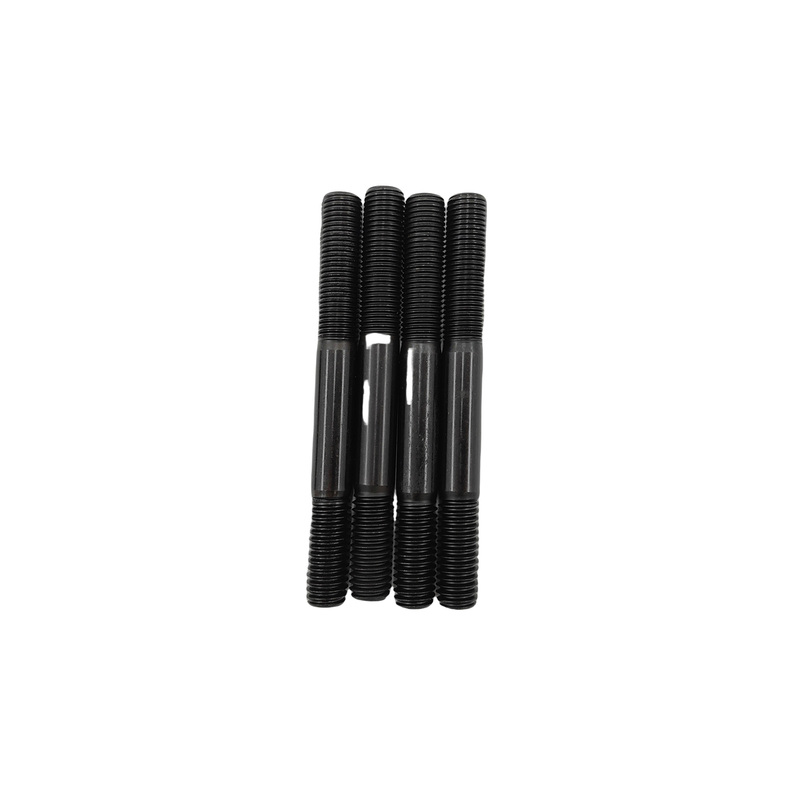

4 x Mid Studs

102.80mm Overall Length

31mm Shank Length

7/16”-14 Thread Into Engine Block

7/16”-20 Thread On Nut End

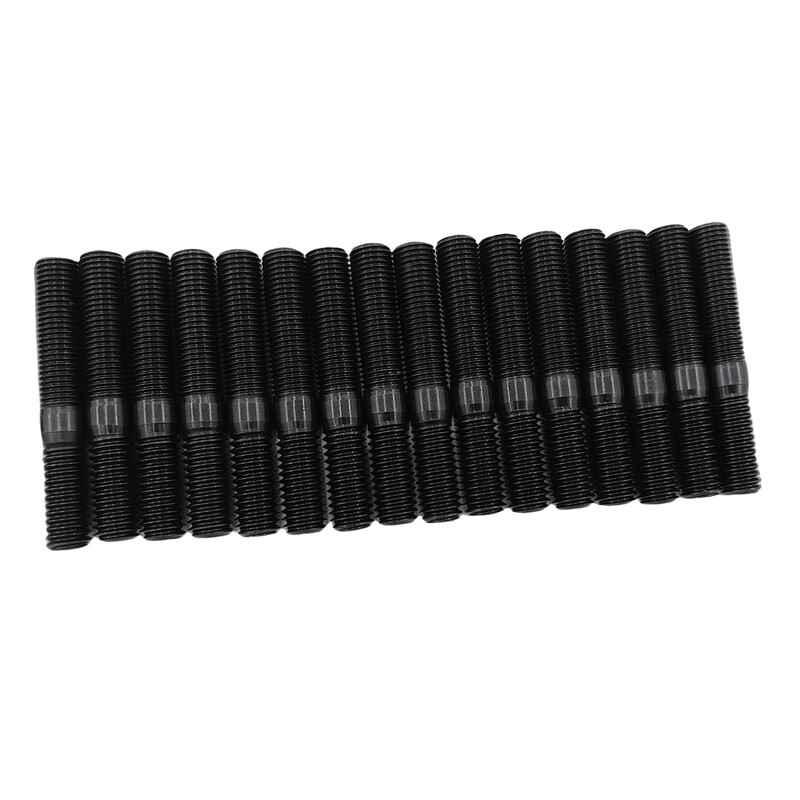

16 x Short Studs

69.50mm Overall Length

5mm Shank Length

7/16”-14 Thread Into Engine Block

7/16”-20 Thread On Nut End

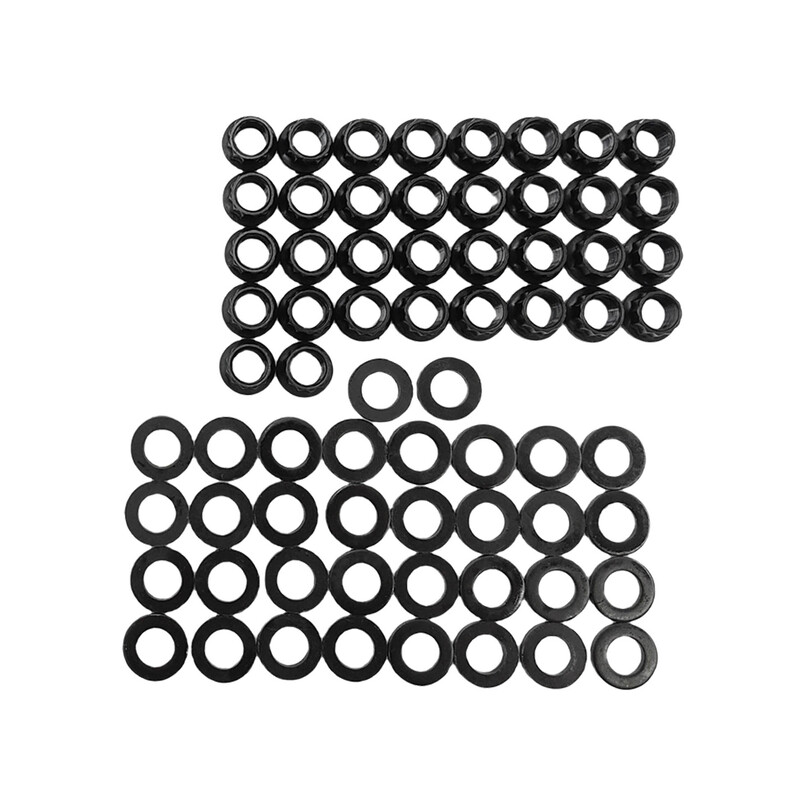

34 x 12 Point Nuts

7/16”-20 Thread

18.15mm Outside Diameter

11.60mm Height



34 x Flat Washers

19.80mm Outside Diameter

11.20mm Inside Diameter

3mm Thickness

SKU	HSTUD-LS001
Brand	MACHTER AUTOPARTS
Shipping Weight	2.5000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.155m
Shipping Cubic	0.000775000m3
