Features

Application Specific
Lowers Front Diff By Approx. 25mm
Corrects CV Geometry

Designed For Lifted 2" - 4" 4WD Model Use

Description

When Lifting IFS Vehicles, The Constant Velocity (CV) Joints Are Put On An Increased Angle. This Increased Angle Of The CV Joint During Operation Can Accelerate The Wear On The Joint, As Well As Putting Additional Stress On The CV Boots Leading To Splitting And Eventually Premature Failure Of The CV. This Wear Is Accelerated Further If Larger (Wider) Wheels And Tyres Are Fitted. Our IFS Diff Drop Kits Are Application Specific And Supplied Complete To Get The Job Done. The Bolt On Kit Corrects The Geometry On The Front Driveshaft And CV’s, Lowering The Front Diff By Approx. 25mm, Thus Reducing The Angles The CV Joints Need To Operate On, And Avoiding The Expensive Replacements Of CV’s And Boots.

Fitment

For Ford Ranger PXI PXII  2011-2018 Not suitable for PX III

For Ford Everest 2015 - 2019

For Mazda BT50 2011 - 2019

Notes

- Not Including Installation Guide Or Manual

- Professional Installation Is Recommended

Please Note This Kit Does Not Fit Vehicles With A Factory Transmission Cooler Behind The Front Diff

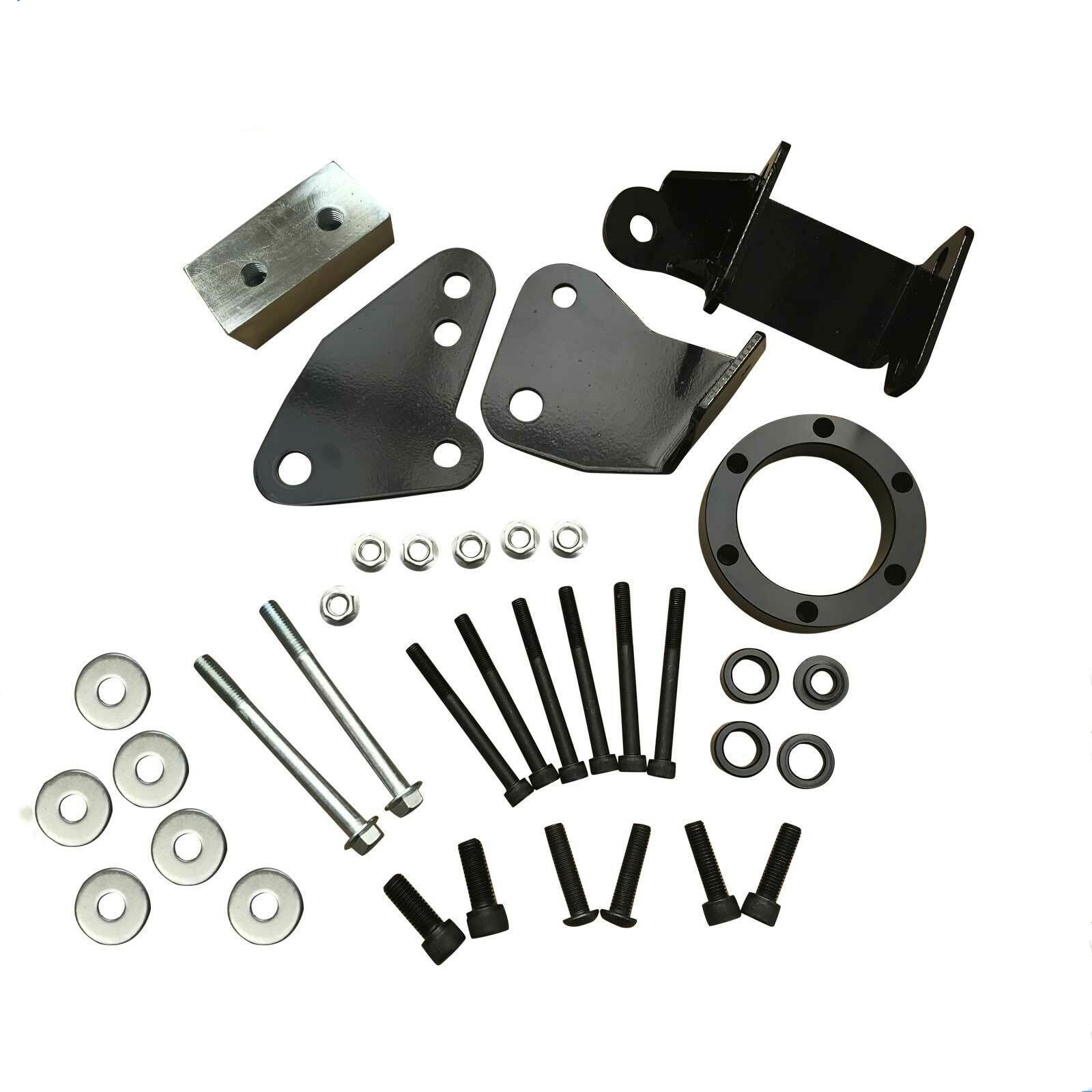

Package

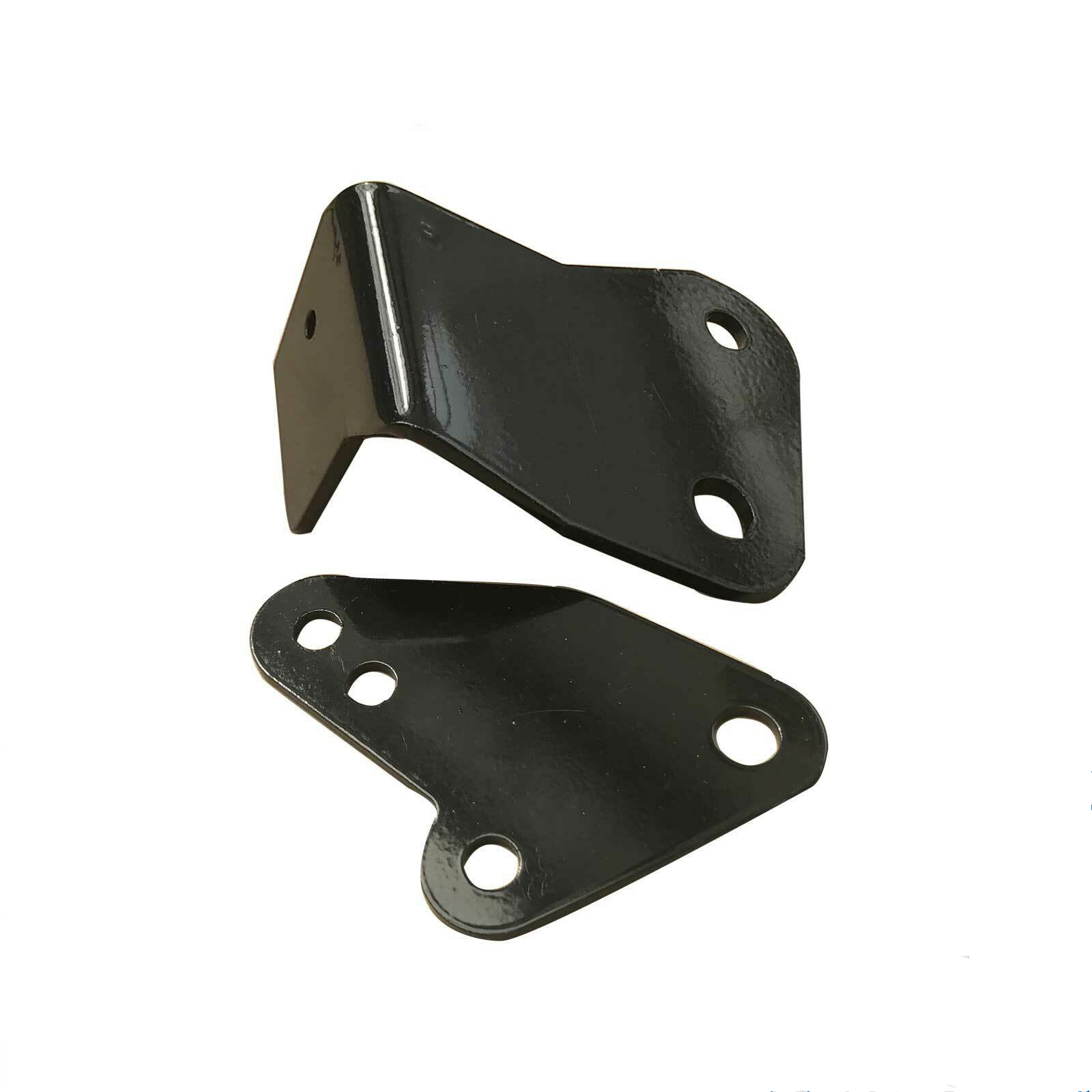

3  Diff Drop Brackets

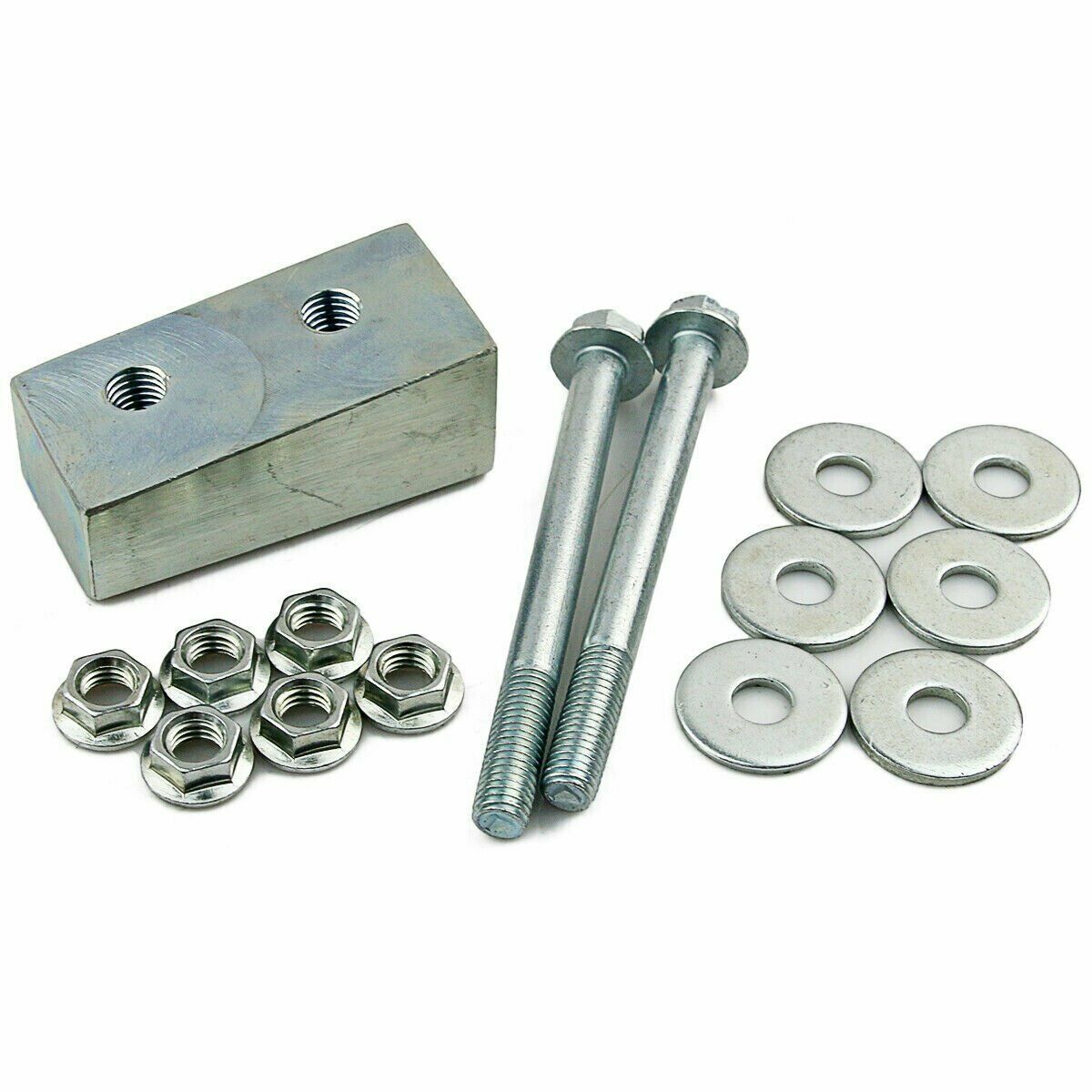

1 x Tapered Block

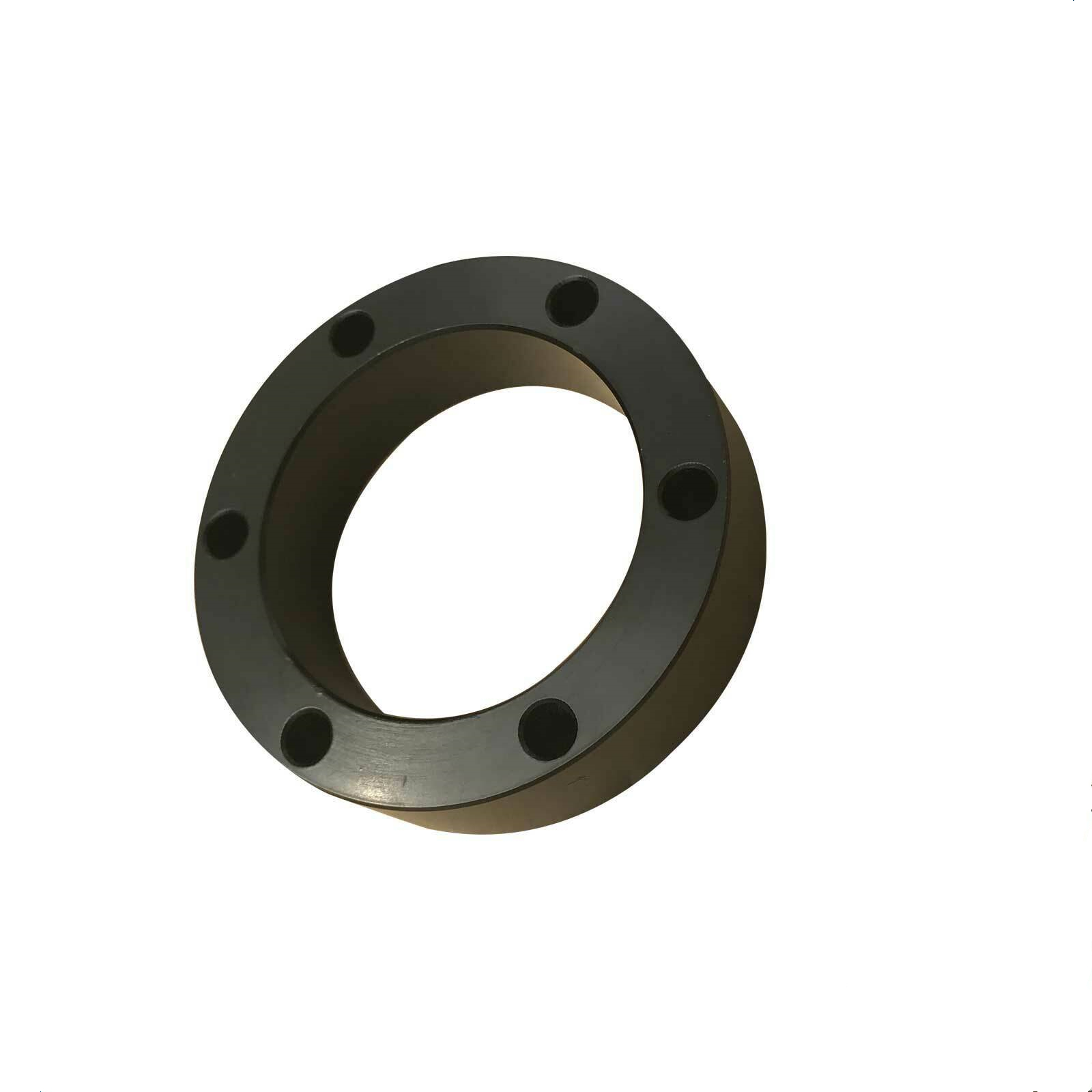

1 x Tail Shaft Spacer
All Necessary Bolts & Washers
