Product Overview

When Lifting Ifs Vehicles, The Constant Velocity (Cv) Joints Are Put On An Increased Angle. This Increased Angle Of The Cv Joint During Operation Can Accelerate The Wear On The Joint, As Well As Putting Additional Stress On The Cv Boots Leading To Splitting And Eventually Premature Failure Of The Cv. This Wear Is Accelerated Further If Larger (Wider) Wheels And Tyres Are Fitted. Our Ifs Diff Drop Kits Are Application Specific And Supplied Complete To Get The Job Done. The Bolt On Kit Corrects The Geometry On The Front Driveshaft And Cv’s, Lowering The Front Diff By Approx. 30mm, Thus Reducing The Angles The Cv Joints Need To Operate On, And Avoiding The Expensive Replacements Of Cv’s And Boots.

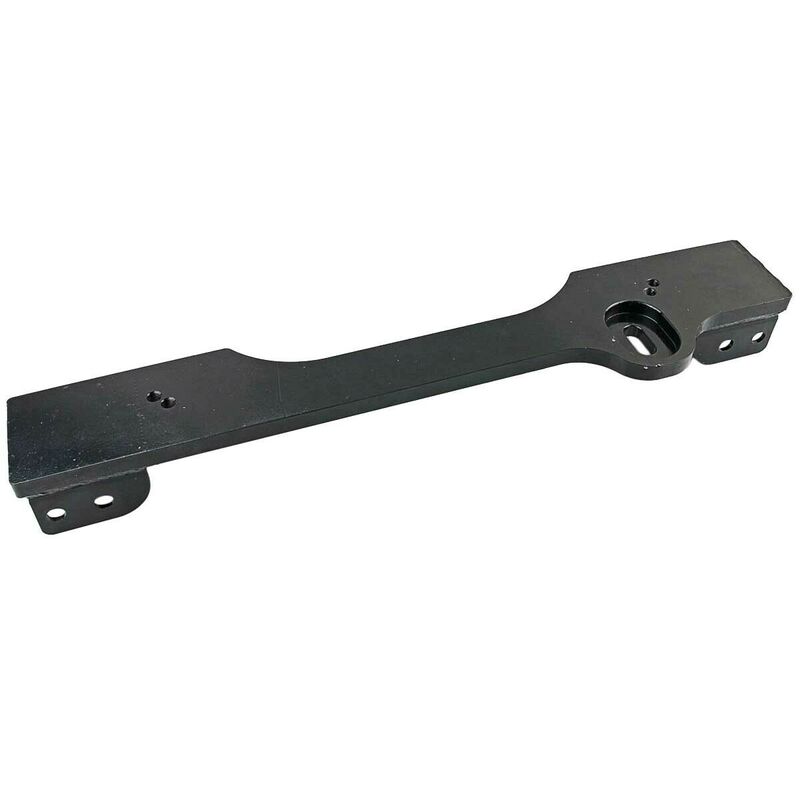

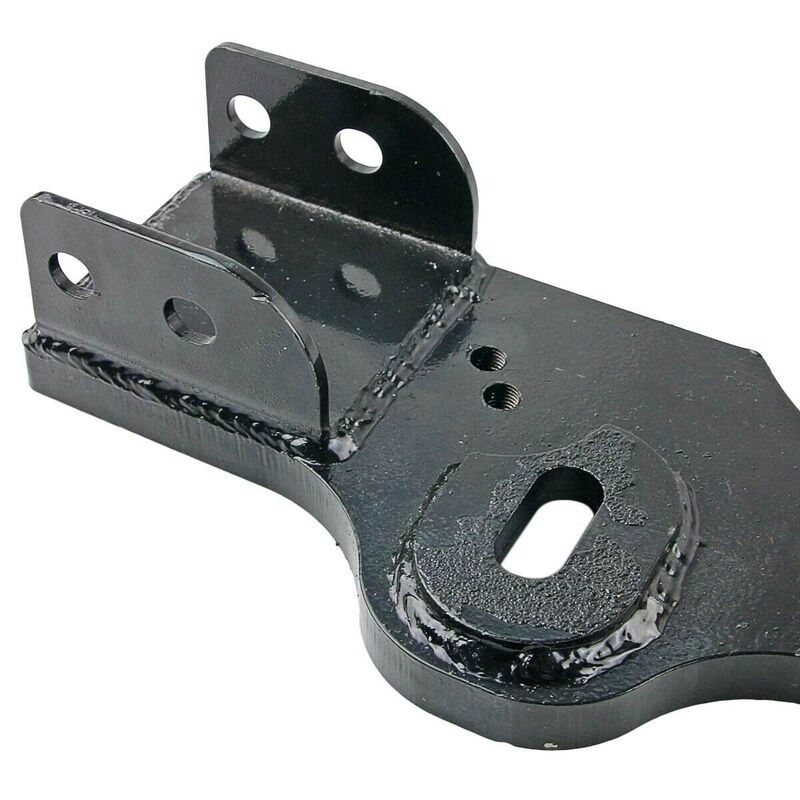

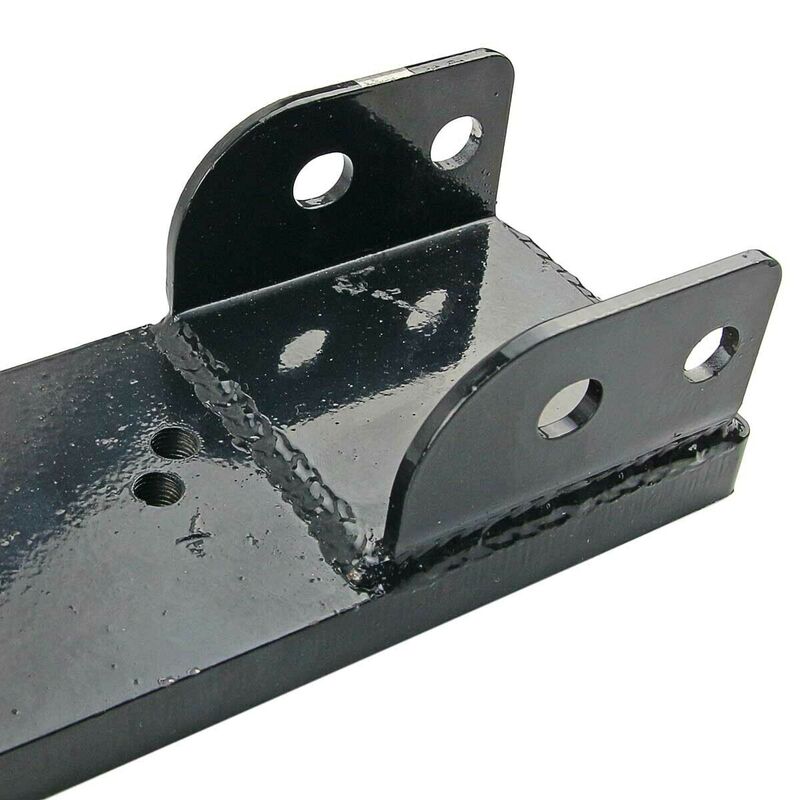

It Comes Complete With New Crossmember And Alloy Spacers. The Crossmember Is Manufactured From Solid Flame Cut 15mm Steel, With a Recessed Machined Diff Mounting Boss, To Avoid Damage To The Diff Bolt Head When Driving Offroad. The Crossmember Is e-Coated And Powder Coated Black, For Increased Longevity And Discreet Fitment, And Can Be Used With After Market Or Factory Protection Plates. The Spacers Are Machined Alloy, In Black, And Supplied Complete With New Mounting Bolts.

Features

To Corrects The Geometry On The Front Driveshaft And Cv’s

Lowering The Front Diff By Approx. 30mm

Designed For Lifted 2" - 4" 4Wd Model Use

Notes

Not Including Installation Guide Or Manual

Professional Installation Is Recommended

Fitment

Fit For Holden Colorado [ RG ] U148FH / U148DK / U148FK 4WD Model 2012 - Present

Fit For Isuzu MU-X UCS85 / UCS86 / UCS87 4WD Model 2013 - Present

Fit For Holden Colorado 7 [ RG ] U156FH / U156MH 4WD Model 2012 - 2016

Fit For Holden Trailblazer [ RG ] U156FH / U156MH 4WD Model 2016 - Present

Fit For  Isuzu D-Max [ RC ] TFS85 / TFS86 / TFS87 4WD Model 2012 - Present

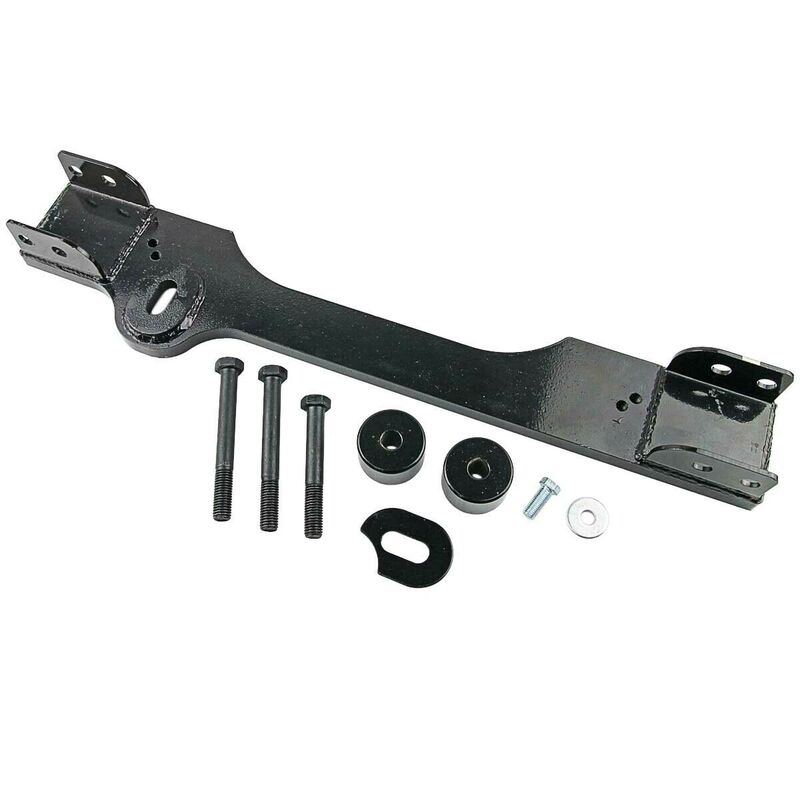

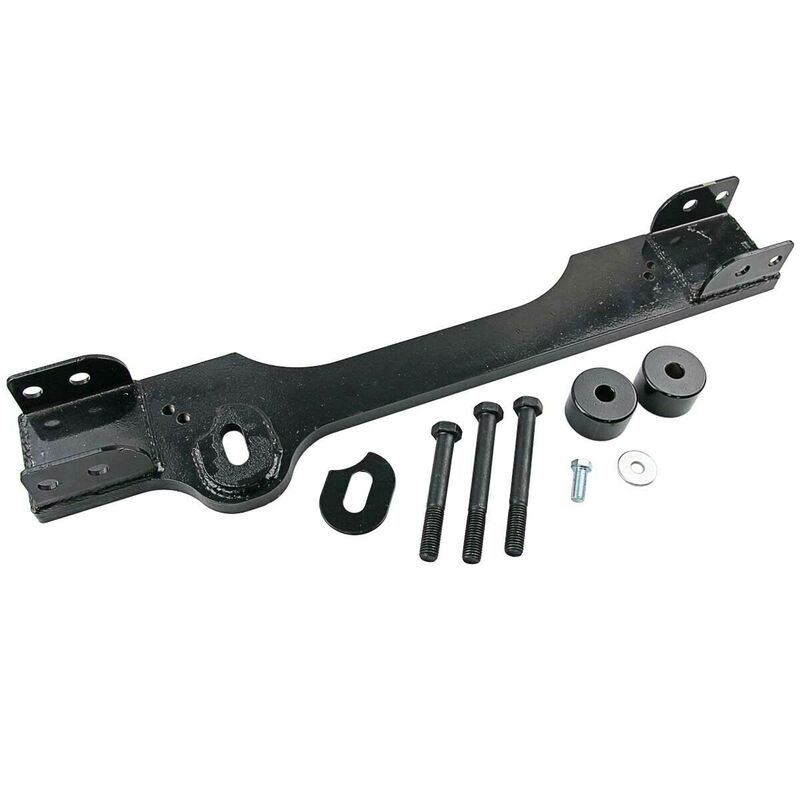

Package

Diff Drop Crossmember

Diff Drop Bosses

Bolt

Washer
