Specification

Spline Count：25

Hub Pilot Diameter：39mm

ABS：No

Stud Count：4

Stud PCD：100mm

Wheel Pilot Diameter：54mm

Brake Pilot Diameter：54mm

Height, Flange Face Bearing Side - Top of Hub Pilot/ Bearing - Ref Image：35.8mm

Bearing Inner Diameter：38mm

Bearing Outside Diameter：70mm

Bearing Width：37mm



Fitment

Fit For Hyundai Accent RB LC MC LS 1.5L 1.6L FWD 2000 - 2016 Up To 11/2013 Only Requires Assembly

Fit For Hyundai Getz TB 1.4L 1.5L 1.6L FWD 2002- 2011 Requires Assembly

Fit For Hyundai i20 PB 1.4L 1.6L FWD 2010- 2015 70mm OD Only

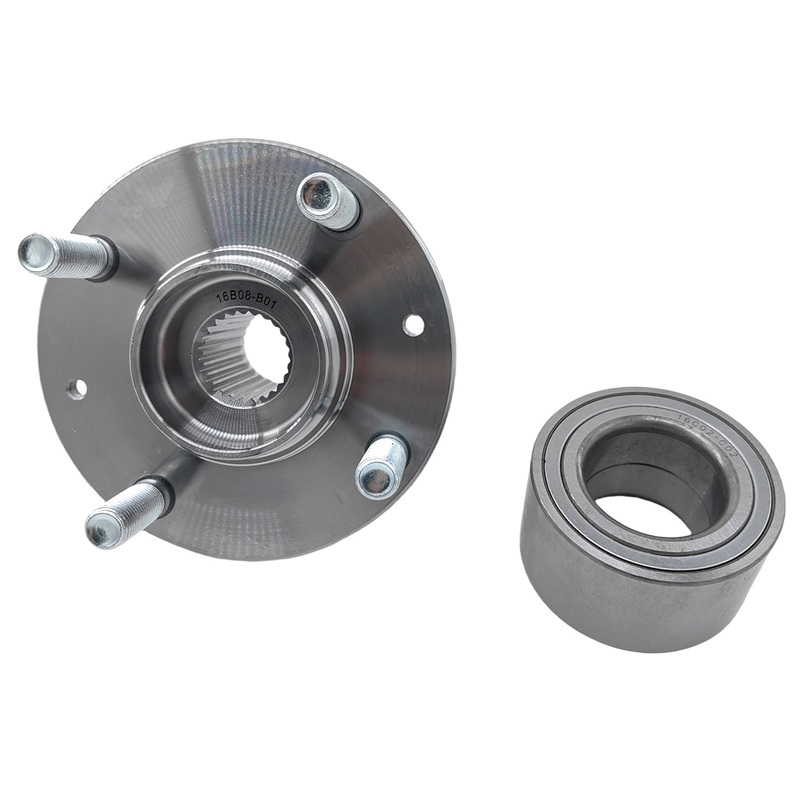

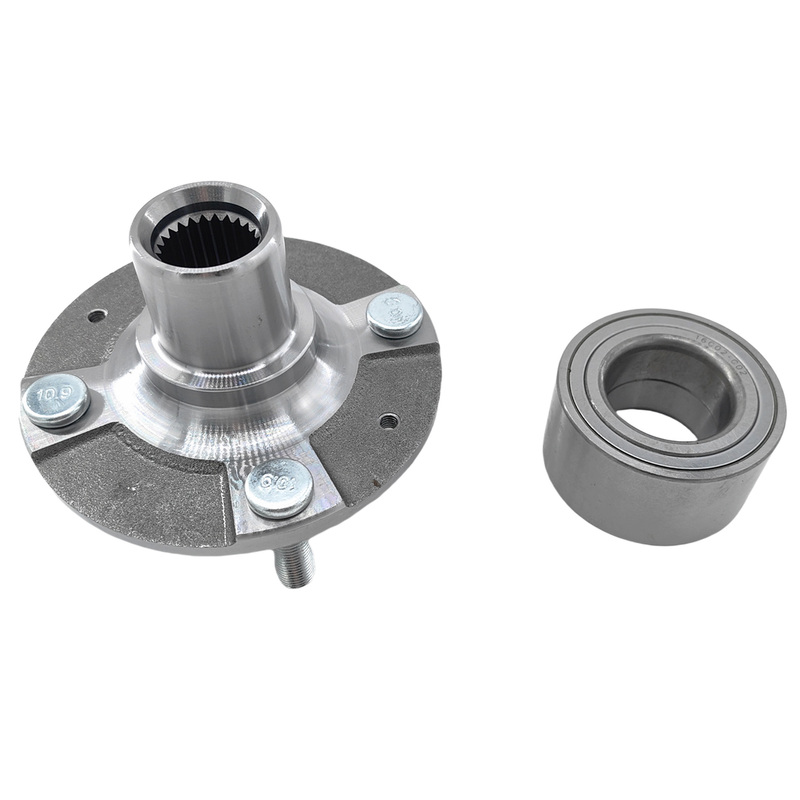

Package

1 x Front Wheel Bearing

1 x Front Wheel Hub

(Left Or Right Hand Side)

SKU	WH-HY016-1PCS
Brand	MACHTER AUTOPARTS
Shipping Weight	2.1000kg
Shipping Width	0.155m
Shipping Height	0.150m
Shipping Length	0.170m
Shipping Cubic	0.003953000m3
