Specifications

Left CV Shaft

Length (Compressed): 532mm

Spline Count - Outer/Wheel Side: 26T

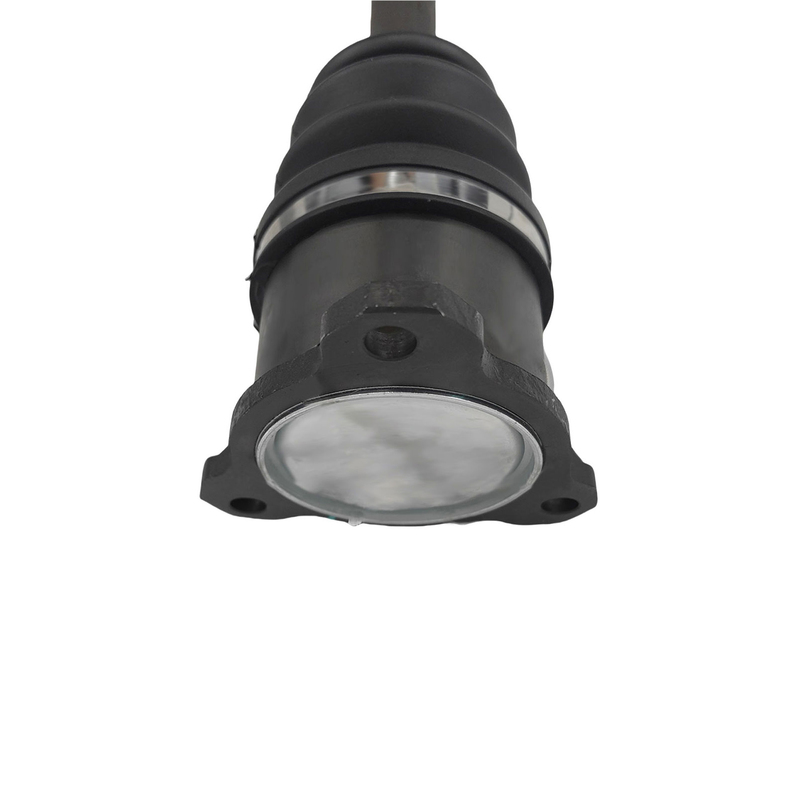

Inboard Joint Type Bolt On - 3 Flange Diameter: 105mm

Bolt Hole Diameter: 10.4mm

3 Bolt Flange Outer Diameter: 126.5mm

Right CV Shaft

Length (Compressed): 607mm

Spline Count - Outer/Wheel Side: 26T

Spline Count - Inner/Diff Side: 26T

Fitment

Fit For Suzuki Vitara JLX, JX 1.6L G16B SE416 & 2.0L H20A SV620 12/1994 - 04/2000

Fit For Suzuki Grand Vitara Sports, Slalom, Freestyle & Limited 2.0L J20A SQ420 & V6 2.5L H25A SQ625 04/1998 - 08/2005

Fit For Suzuki X90 1.6l G16B SZ416 1995 - 1998

Package

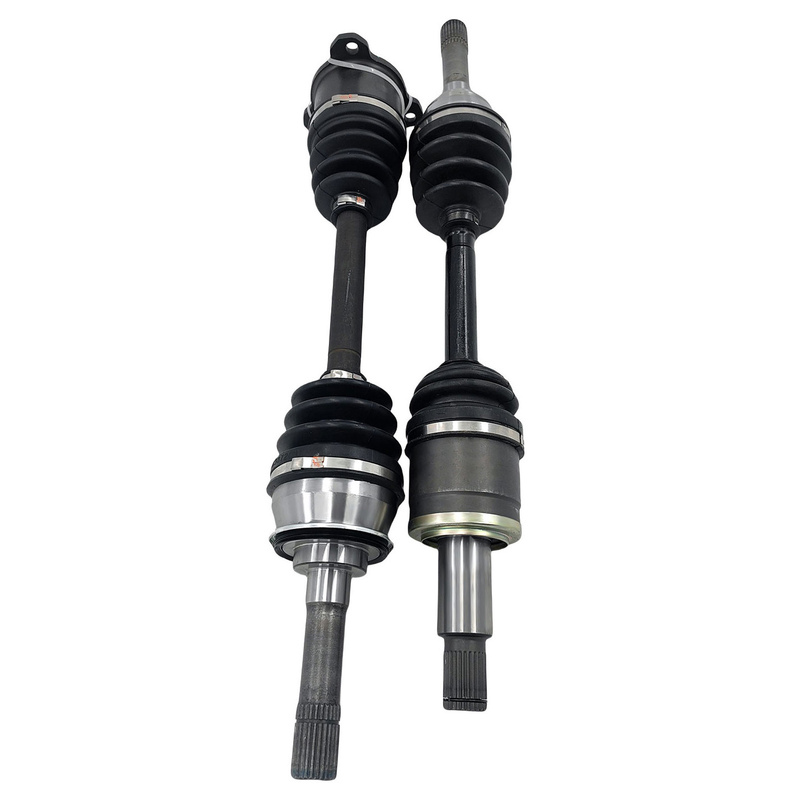

2 x CV Joint Drive Shafts (Front Left + Right Hand Side)
