Specification

Left CV Shaft

Length (Compressed): 634.0mm

Inboard Spline Count: 25T

Inboard Joint Type: Tripod

Shaft Diameter: 25.0mm

Outboard Spline Count: 25T

Outboard Joint Type: Ball Bearing

ABS: NO

​Right CV Shaft

Length (Compressed): 923.0mm

Inboard Spline Count: 25T

Inboard Joint Type: Tripod

Shaft Diameter: 25.0mm

Outboard Spline Count: 25T

Outboard Joint Type: Ball Bearing

ABS: NO



Fitment

Fit For Hyundai Accent LC 1.5L Non ABS Automatic Transmission 06/2000 - 05/2004

Fit For Hyundai Accent LC 1.6L Non ABS Automatic Transmission 2003 - 2007



Package

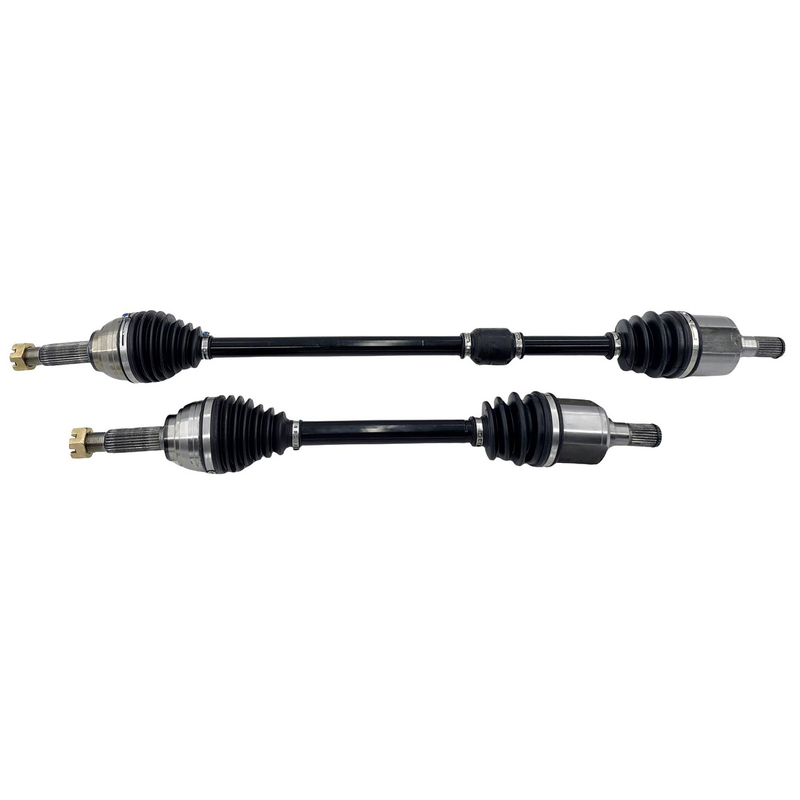

2 x CV Joint Axle Drive Shafts (Left + Right Hand Side)

SKU	CVS-HY005-2PCS
Brand	MACHTER AUTOPARTS
Shipping Weight	12.0000kg
Shipping Width	0.250m
Shipping Height	0.130m
Shipping Length	1.075m
Shipping Cubic	0.034938000m3
