Product Specifications

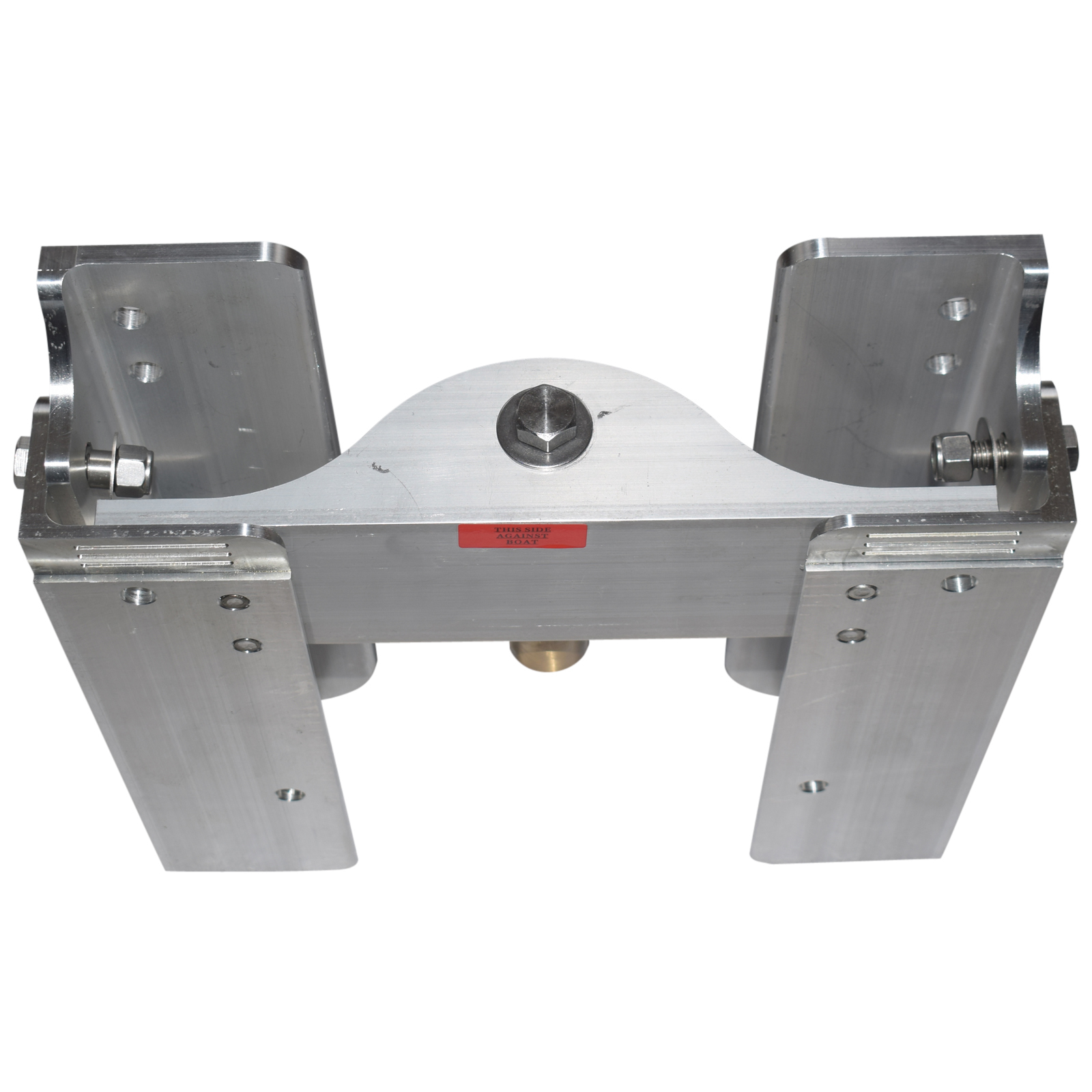

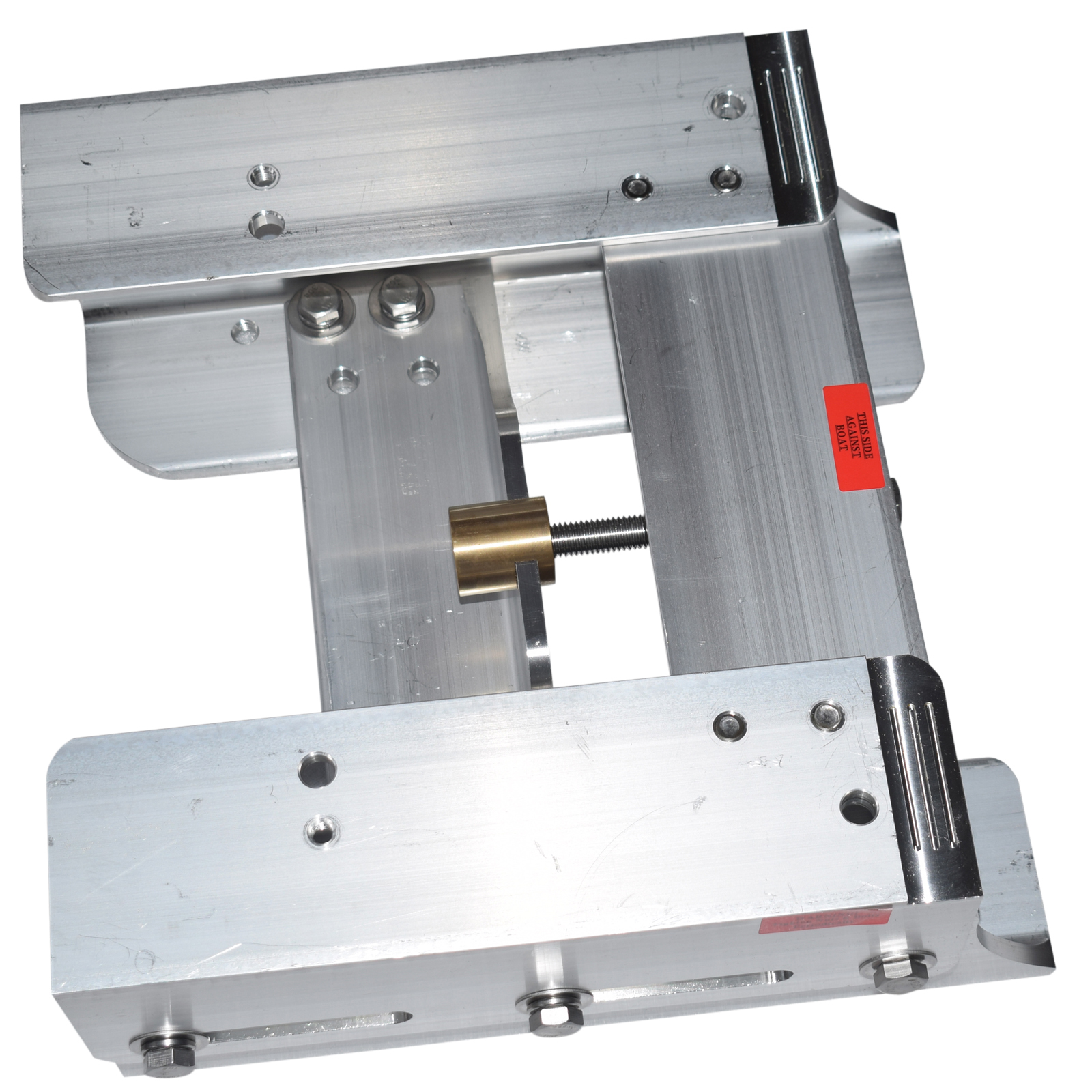

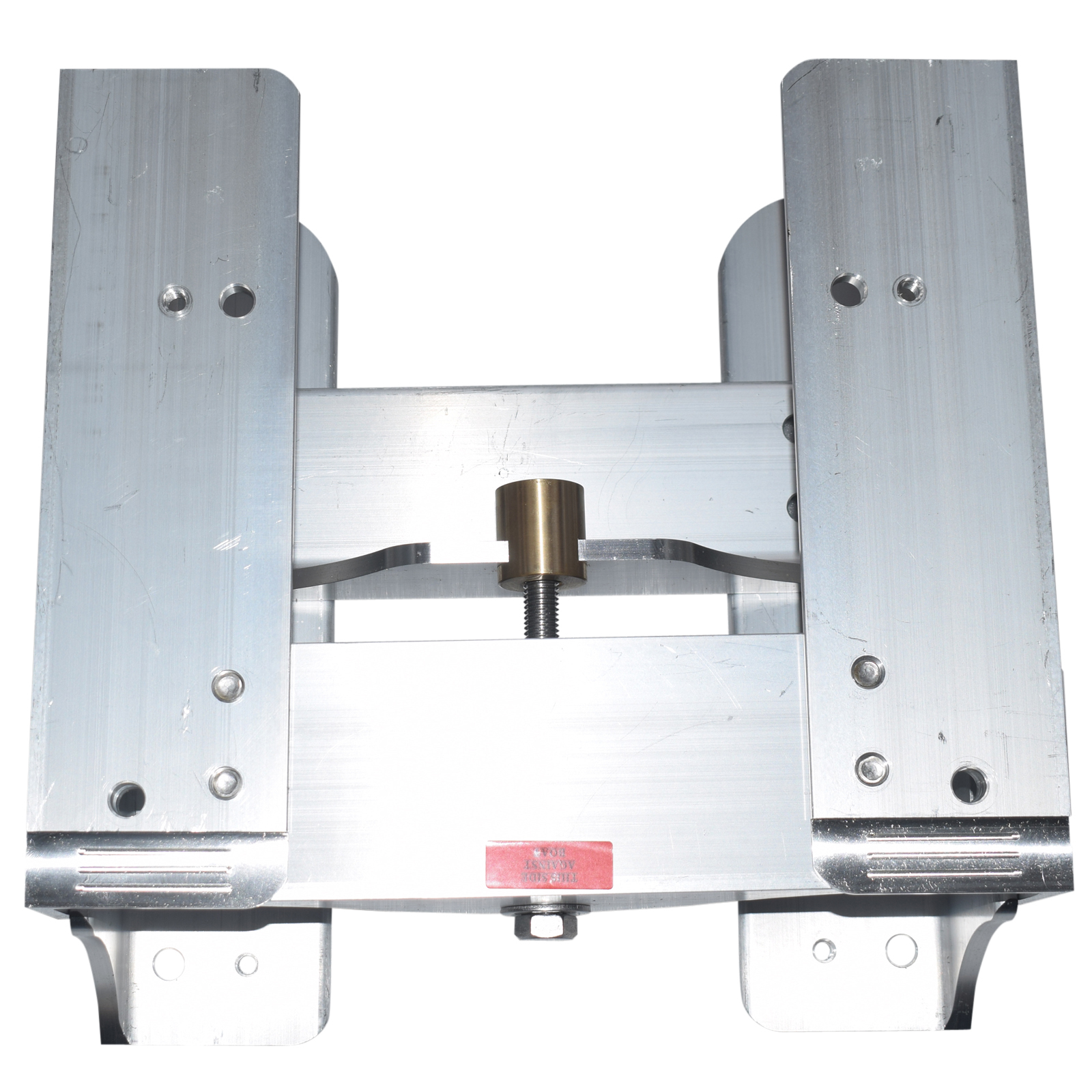

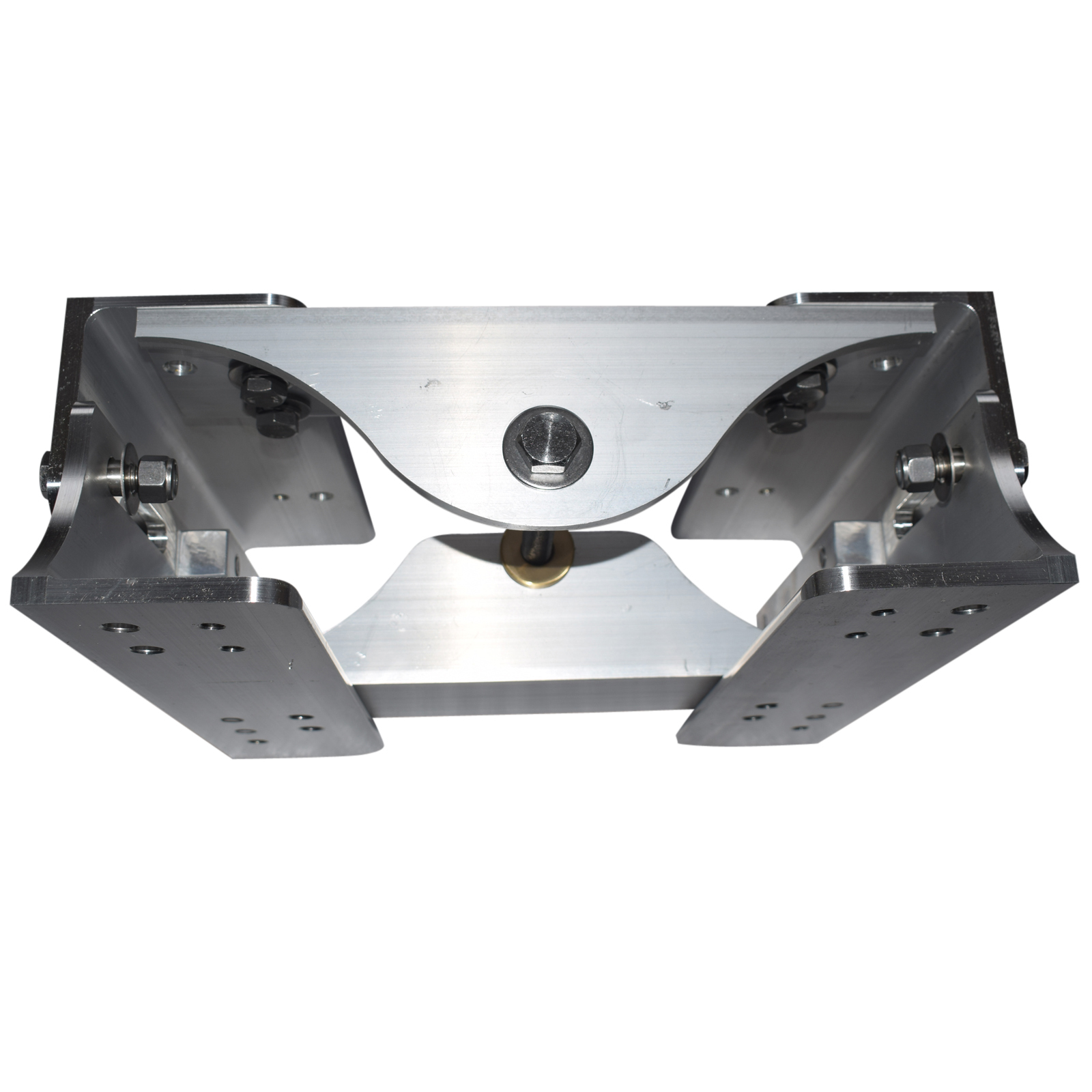

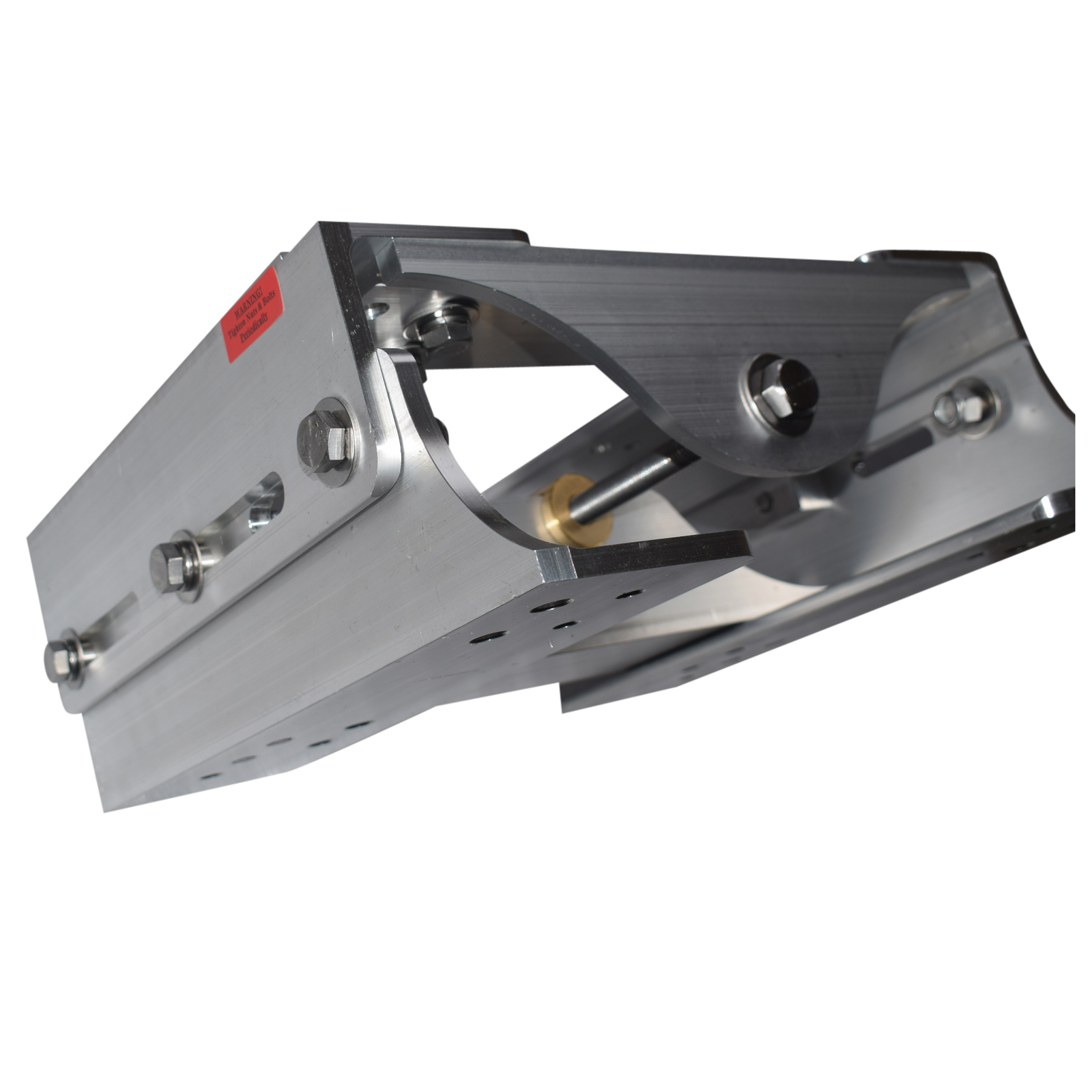

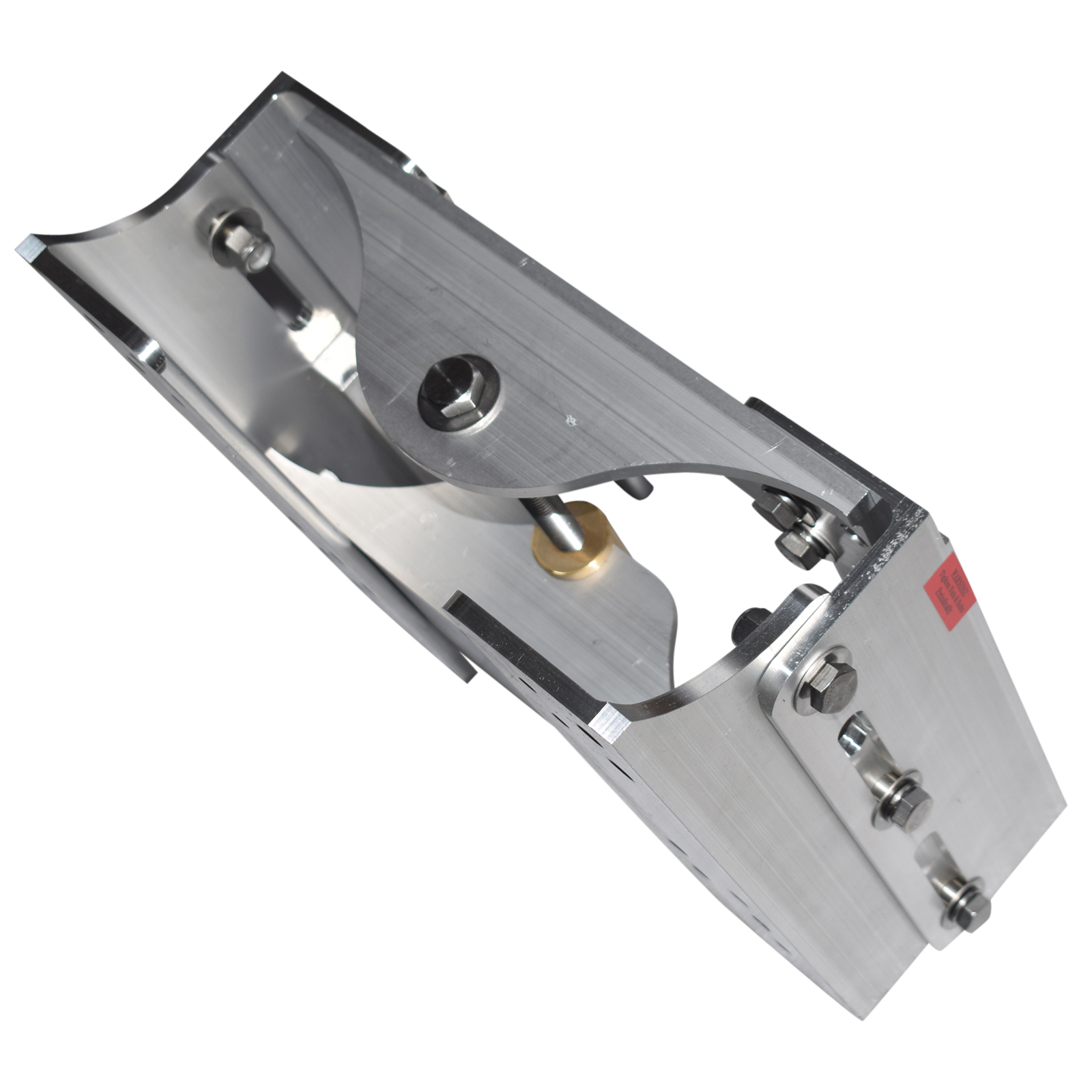

• Single adjusting jack plate

• Made of high strength polished aircraft quality aluminum

• Bronze and brass hardware eliminate binding

• Adjusts easily by turning one steel bolt

• Offers 4 inches of adjustable vertical movement

• 6 inches of setback

• Weighs 27 lbs

• 225 maximum horsepower

Please keep in mind that these characteristics listed below can also be indications of other, more serious issues. However, if you are experiencing any or all of the above your boat could be a good candidate for a jack plate implant.

• Poor holeshot

• Your outboard's not perpendicular (straight up + down) in relation to the water at top speed

• If you can trim the engine all the way up without the prop letting go or with no appreciable loss of water pressire at full throttle.

• The hull does not seem to 'lift' like it should

​

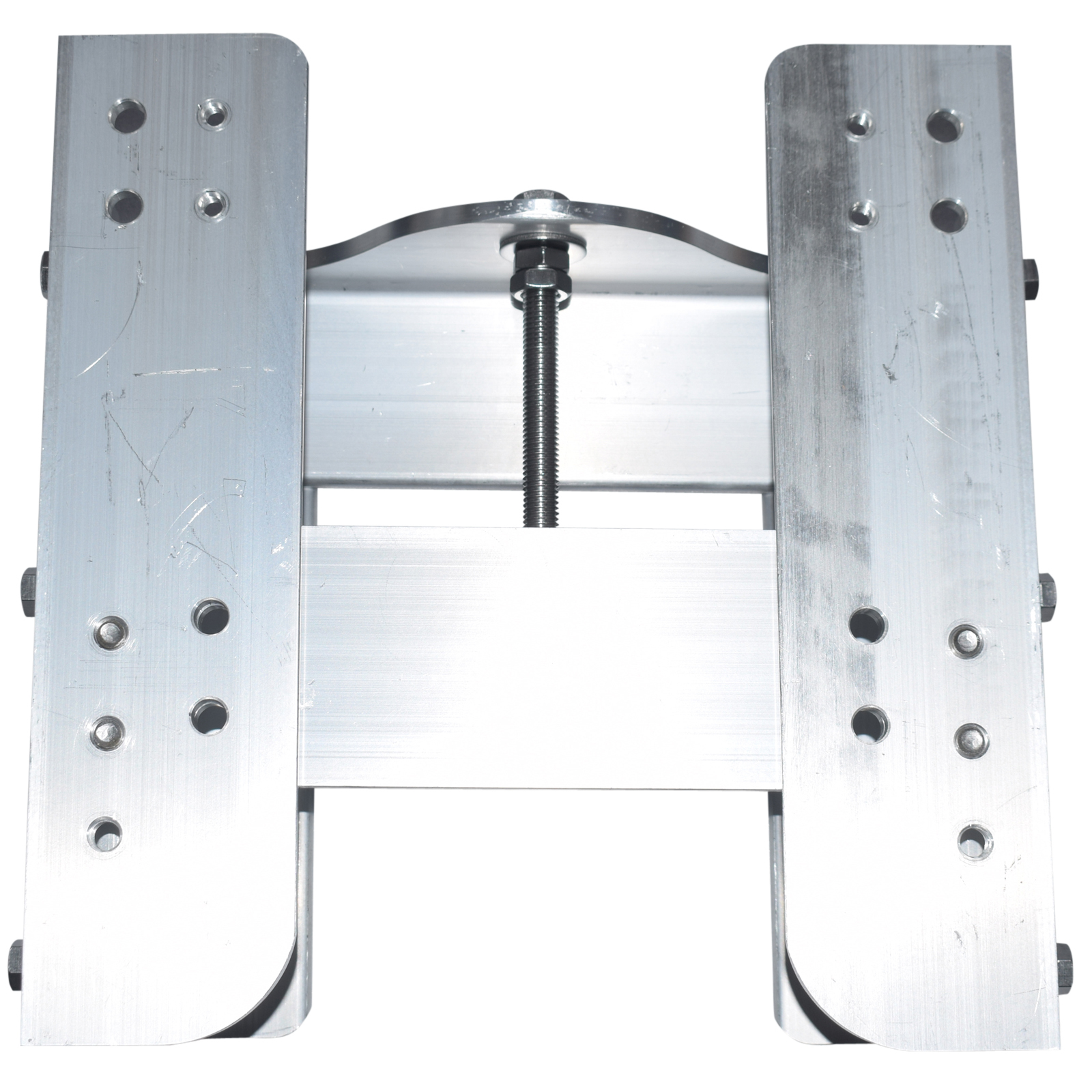

1). Here are the pre drilled hole dimensions listed below in inches:

• Pre drilled holes for 1/2'' stainless hardware

• 12 7/8'' across the top two holes from center to center

• 9 7/8'' across the bottom two holes from center to center

• 8'' of vertical distance between the top holes and bottom mounting holes
